Plywood Subfloor: Choosing the Right Panel
Choosing the right plywood subfloor keeps the floor level, quiet, and strong for the life of the building. The subfloor is the load-bearing layer under the finish floor, so the panel choice affects everything above it, from tile to carpet. Start from the load: the subfloor carries furniture, people, and the finish layers, so its specification deserves more than the cheapest sheet.
This guide covers the thickness, grade, and installation steps that decide whether a subfloor performs.
What a Plywood Subfloor Does
The subfloor sits on the joists and carries the finish flooring plus the daily load of people, furniture, and foot traffic. It also spreads point loads, so a heavy cabinet or an appliance does not stress a single joist.
Three properties matter most in that role:
- Stiffness across the panel. The sheet must stay flat between joists without bouncing.
- Fastener holding at the edges. Screws and nails bite into the panel where the joists meet it.
- Moisture tolerance. A small leak must not destroy the layer the whole floor rests on.
A panel that fails in any one of these three pulls the finish floor down with it, which is why the subfloor is the last place a buyer should save money.
Think of the subfloor as the floor that gets walked on before the finished floor arrives. Builders stand on it, materials stack on it, and trades move across it for weeks, so the panel has to survive site life as well as the permanent load it carries. A soft sheet that dents under a tool box or a scaffold base becomes a repair inside the finish later.
The same panel also carries vibration. Foot traffic, appliances, and equipment all send energy through the layer, and a stiff, well-fastened panel stays quiet where a weak one transmits every step. Builders who fight squeaks and bounce on a finished floor usually trace them back to the subfloor specification they chose in the first place.
Choosing the Right Thickness for Your Joist Spacing
Thickness follows the distance between joists. Closely spaced joists allow a lighter panel, while wider spacing demands a thicker sheet to carry the same load without deflection.
In plain terms, the standard depth for typical residential spacing is 18 mm on standard joist centers, with 15 mm used where joists run closer and 12 mm limited to low-traffic or non-load-bearing layers. Match the panel to the joist spacing in the drawing, not to the cheapest quote.
For the common structural sheet in this role, Commercial Plywood in 18 mm carries most subfloor work, and the same construction with a coated face serves the wettest floor zones. Buyers who order a heavier sheet than the drawing calls for spend money that delivers no benefit, so confirm the spacing before you choose.
The joist spacing on the drawing is the number to trust, not the spacing on a similar job. Spans vary with lumber grade, and ordering a panel for a wider span than the actual framing invites a bouncy floor. Confirm the centers, then confirm the sheet.
In export orders the same thickness can be quoted in millimetres against an imperial footprint, so double-check that the sheet size and the joist layout agree before the container is booked. A panel that is right on paper but wrong on the drawing is the most expensive kind of mistake, because it is discovered after the floor goes down.
Note the expansion detail when you lay out the sheets as well. A few millimetres of breathing room at the panel edges prevents buckling when the floor warms, and the gap disappears under the finish tile or flooring seam.
Grade and Face Choices for Subfloor Panels
Grade decides how the panel behaves on site, and it decides the surface the finish floor sees. Panel face quality ranges from clean, smooth faces to working grades where knots and patches are accepted.
For a subfloor that receives carpet, tile, or wood, a smooth sanded face gives flatter seams and fewer callbacks. For areas that will be covered by structural layers or heavy finishes, the face matters less and the core strength matters more.
Ask the supplier for the face quality in the specification rather than by name alone, because the same word covers different panels at different price points. The core construction carries the load, and the face carries the finish, so buy for both.
Core quality shows up fastest at the fasteners. A tight, compact core holds every screw position, while a loose core crushes under the head and opens the seam over time. Press a thumb on the edge of a sample: the difference between an honest core and a soft one is felt before it is measured.
Panel edges deserve the same inspection as the faces. A partially sanded or patched edge signals a working grade, while a clean, uniform edge is the sign of a panel made with the finish floor in mind. Check the edges of several sheets in the bundle, not just the top one.
Bundle inspection is worth doing once at delivery. Pallet straps hide the sheets beneath, and the panels that travel at the bottom of a stack take the worst of handling and storage, so check a few sheets pulled from the middle of the stack before you accept the load.
Moisture and the Subfloor Layer
Subfloors see moisture during the build: rain on open joists, spills, and condensation before the building is dried in. Water is the main enemy of the layer beneath a finish floor, because damage there is invisible until the floor fails.
Handle moisture in three places:
- At delivery. Keep panels elevated, covered, and dry until they go down.
- At the edges. Seal cut edges where the panel meets openings and walls.
- At the joints. Keep seams tight so water has no easy path between panels.

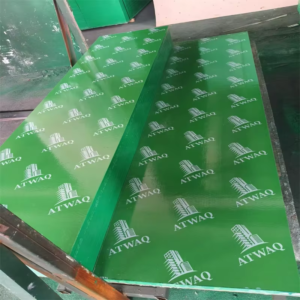

For the dampest zones, such as a floor level that stays open through a rainy season, some buyers step up to a coated panel. The film faced sheets made by the same factories for Film Faced Plywood formwork shrug off that exposure better than a bare face, though they cost more.
Ventilation is part of moisture control too. A subfloor over a damp crawl space needs the space under it to breathe, and the panel edges need clearance rather than being trapped against blocking. Plan the airflow the same way you plan the panel.
Watch the delivery schedule as well. The floor layer that sits at a yard all season picks up weather before it ever reaches the building, and a panel that arrives wet is a panel that starts life at a disadvantage. Keep the bundles under cover from the day they land.
How Subfloor Panels Go Down
Installation decides as much as the panel. Work from the drawing, layout the sheets with the long direction across the joists, and stagger the seams so four corners never meet.
Follow a short installation checklist:
- Gap the panels slightly at the edges so expansion has room.
- Stagger joints over different joists run to run.
- Drive fasteners into the joist centers, not the panel corners.
- Leave fasteners set firm but not crushed through the face.
- Check flatness across the field before the finish floor arrives.
Where the subfloor meets cabinets, pipes, and stairs, cut to fit and reseal the cut edges the same way you seal the panel before it went down.
If the finish floor will be tile, lay the subfloor one step ahead of the promise: flat, dry, and well fastened. Tile transfers every imperfection of the layer beneath it, so extra minutes spent flattening the subfloor save hours of tile leveling later.
Fastener spacing is a schedule, not a suggestion. Follow the pattern from the panel specification so the sheet stays tight to the joists across its whole area, and keep the fasteners back from the seams where the panel has least material to hold.
A straight chalk line across the face at each joist keeps the fastener pattern honest across the field, and it catches a drifting crew before the pattern turns into weak seams.
Common Questions About Plywood Subfloor
Buyers and builders raise the same questions about this layer, and the answers stay consistent.
Is one plywood grade enough for the whole subfloor?
Most projects use one structural grade across the field, with a coated or heavier panel only in known-wet zones. Keeping to a single sheet simplifies delivery and inspection.
Should the panel be sealed before it goes down?
Seal the cut edges and any holes you make, not the whole face, unless the exposure is extreme. Over-coating the entire panel adds cost and can trap moisture between the sheets.
Can a subfloor panel be repaired, or must it be replaced?
Small damaged sections can be cut out and sistered in with blocking. Widespread swelling or delamination means replacement, because patching cannot restore the strength of the layer.
What happens if the subfloor gets rained on?
Short soaking is recoverable if the panels dry out flat and the edges held. Standing water or repeated wetting is the warning sign to inspect the layer closely and replace any sheet that shows swelling or separation.
Do I need a thicker subfloor panel under tile?
Tile needs flatness and stability more than extra thickness by itself. Work to the joist spacing and keep the sheet flat and dry; a thicker sheet alone does not fix a soft or uneven layer.
Planning a subfloor order? HYY, the export organization behind this site, supplies commercial and film faced panel programs for structural floors and can match the thickness and grade to your joist spacing. Compare the panels across the full plywood range before you build your quantity.
